Select Report Elements and Access Their Settings

<< Click to Display Table of Contents >>

Navigation:  User Interface (UI) Elements > Report Designer > Create Reports >

Select Report Elements and Access Their Settings



Select Report Elements and Access Their Settings

You can click a report control or band to select it, and press TAB/SHIFT+TAB to select the next/previous control.

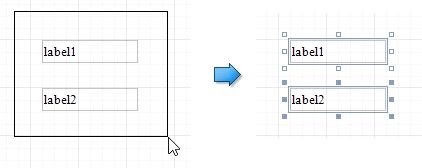

Do one of the following to select multiple report controls:

RDRElementssettings

Press and hold the SHIFT or CTRL key and click the controls.

Click the gray area around the design surface to select a report.

You can use smart tags to access the most commonly used element properties. Smart tags are available for reports and most report controls and bands.

RDreportElements3

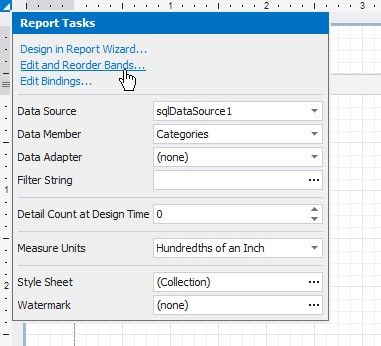

Smart tags can also contain context links that enable you to perform various actions.

RDreportElements4

The Toolbar provides a corresponding contextual tab when you select a report control. This tab allows you to specify settings and perform actions applicable to the selected element's type.

RDreportElements5

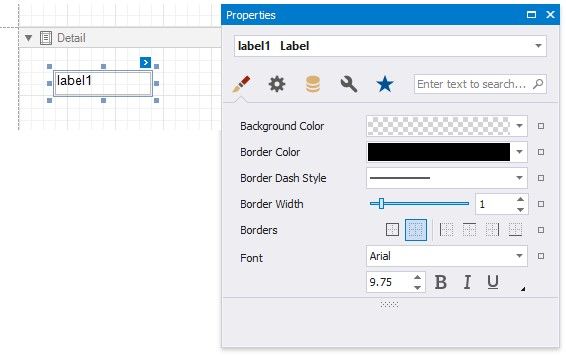

You can use the Property Grid to access the whole set of settings that the selected element supports.

RDreportElements6
