Create a Query or Select a Stored Procedure

<< Click to Display Table of Contents >>

Navigation:  User Interface (UI) Elements > Report Designer > Data Source Wizard > Connect to a Database >

Create a Query or Select a Stored Procedure



Create a Query or Select a Stored Procedure

On this wizard page, you can choose which tables, views and/or stored procedures from your data source to display in the report.

CQSSP1

Manage Custom Queries

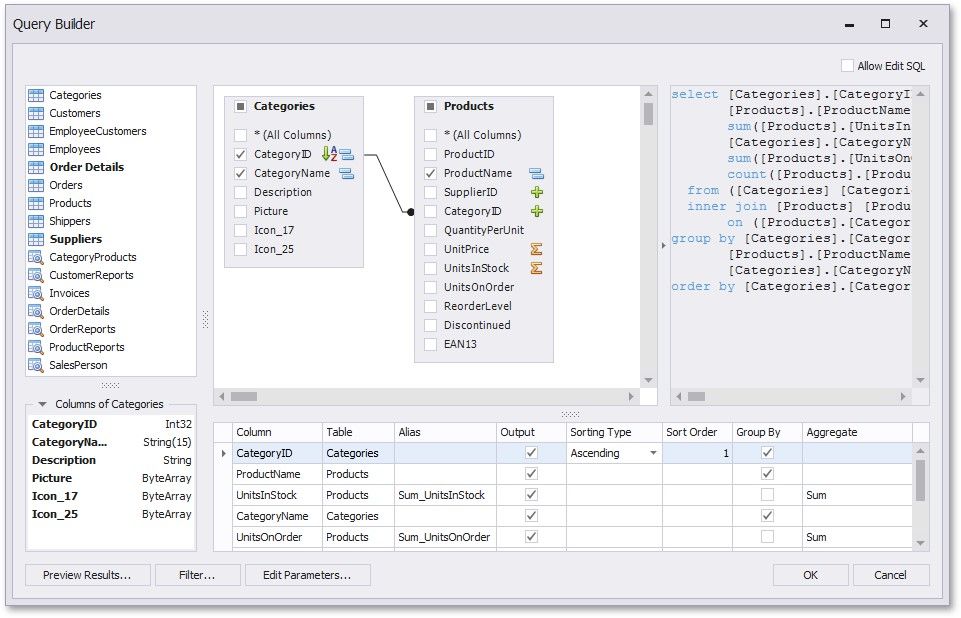

When you are required to shape the query data at the level of a data source, you can create custom queries by expanding the Queries category and clicking the CQSSP2 button. This will invoke the Query Builder where you can create complex queries by joining multiple tables, filtering, sorting and grouping their data, as well as calculating various aggregate functions.

CQSSP3

The Query Builder can also be used to specify custom SQL, if this functionality is enabled by your software provider.

To customize an existing query using the Query Builder, click the CQSSP4 button.

To delete a query, click the CQSSP5 button.

On finishing the wizard, each of the selected data items will be included into a separate query.

CQSSP6

Specify Master-Detail Relationships

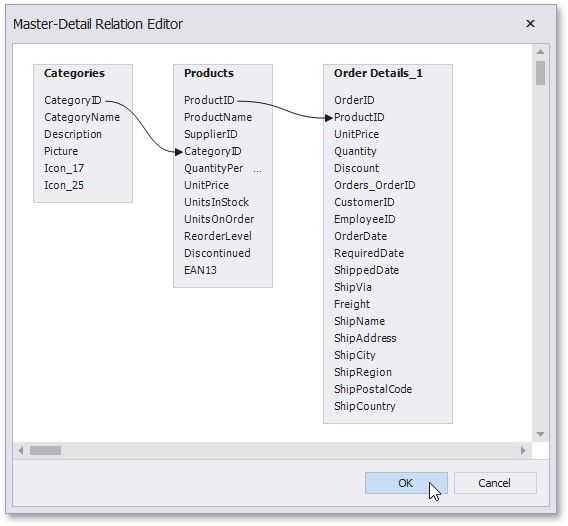

To define master-detail relationships between two or more queries, click Manage Relations.

CQSSP7

To create a new relationship, connect the required key fields using drag and drop.

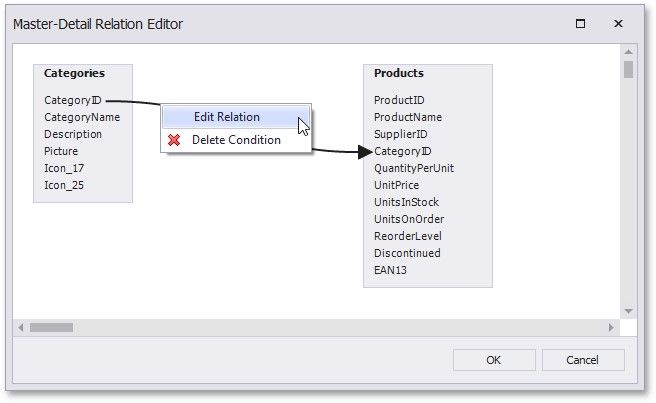

To edit an existing relationship, double-click the corresponding arrow or right-click it, and select the Edit Relation command in the invoked context menu.

CQSSP8

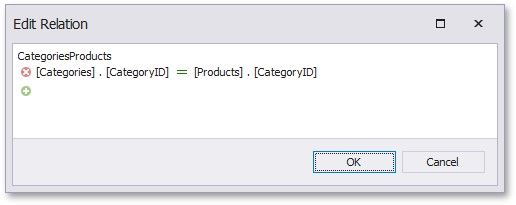

This will invoke the Edit Relation editor that provides a different UI to manage the data relationships.

CQSSP9

On finishing the wizard, the specified data relationships will appear in the Field List.

CQSSP10

If selected queries or stored procedures contain any parameters, you will be required to define their values on the next wizard page: Configure Query Parameters.
