Mail Merge



Mail Merge

The Mail Merge feature enables you to use the text retrieved from a data source for filling in the fields in a document template. This feature is useful for letters, catalogs, mailing labels, and for personalizing any kind of a document.



To merge data fields in a Rich Text Editor document, perform the following steps.

MM2Prepare a Data Source

To perform a mail merge, you need a template and a data source. The template is a document containing fields

(placeholders for the information that will be merged). The data source contains data that will be merged into the fields in the document template to create merged documents.



MM3Create a Template for Mail Merge (Insert Fields)

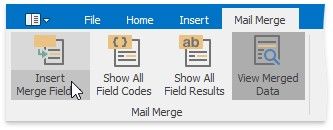

When an application runs with the mail merge data source attached to the Rich Text Editor, you can create a template for mail merge. To do this, create a new document, type the mail content and insert merge fields into this document. To insert fields, on the Mail Merge tab, in the Mail Merge group, click the Insert Merge Field button.

MM4

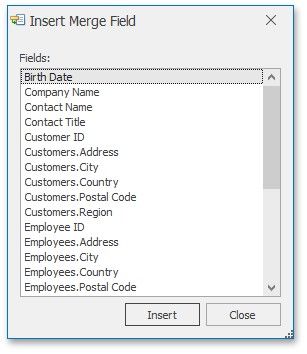

The drop-down list or a dialog window containing field names will be shown.

MM5

Choose the required field and click Insert. The field is inserted at the cursor position.

MM6Preview Field Values

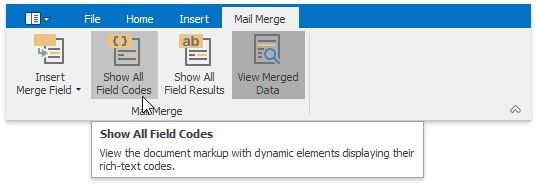

The Show All Field Codes button on the Mail Merge tab displays field codes for all fields in the document.

MM7

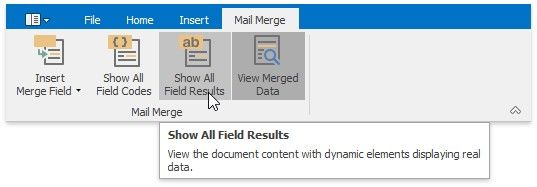

The Show All Field Results button on the Mail Merge ribbon tab displays field placeholders if the View Merged Data button is switched off. If this button is switched on, then the current record of the data source is displayed in place of the field.

MM8

The merge field code looks like the following:

{MERGEFIELD "field name" [* MERGEFORMAT]}

The optional * MERGEFORMAT switch, which you can add manually, retains formatting applied to the field.
