Exporting and Printing
The Pivot Grid control allows its data to be printed and exported.
Export
The Pivot Grid control allows you to export Pivot Grid data to a file or stream in various formats - HTML, MHT, PDF, RTF, TXT, CSV, XLS or XLSX. When you export, you copy data from a pivot grid into a new file formatted for use in another application.
Export Modes
Two export modes are supported when exporting data from a Pivot Grid control to table formats (*.xls(x), *.csv).
Data-aware Export - The export mode, optimized for subsequent analysis of pivot grid data within Microsoft Excel. Various data shaping options that are applied within the pivot grid are retained in the output XLS(X) and CSV documents.

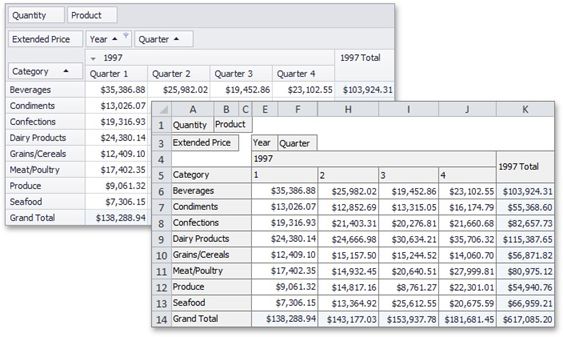

WYSIWYG Export - In this export mode, the layout of pivot grid cells is retained in resulting XLS(X) and CSV documents. Specific data shaping options are not retained compared to data-aware export. Data exported using other formats (PDF, RTF, TXT, etc.) is always exported in the WYSIWYG mode.

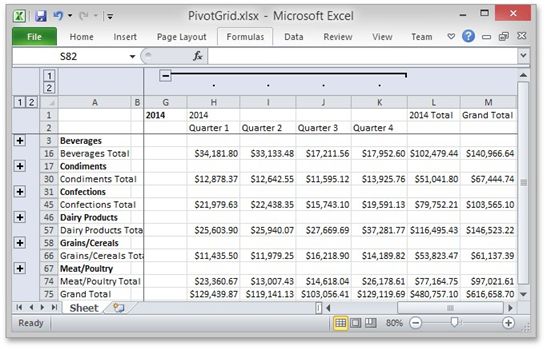

Data-Aware Export
Data-aware is the default export mode for XLS and XLSX formats, and is optimized for subsequent analysis of pivot grid data within Microsoft Excel.
The following data shaping options, which are applied within the pivot grid control, are retained in the output XLS-XLSX documents.
Data Grouping - with the capability to collapse/expand groups within a worksheet.
Fixed Columns – allow column and row areas to stay in sight.
Cell Formatting – allows you to export the number format.
Display Text/Value export - allows you to select whether to export display text or values.
Printing
The Pivot Grid Control allows to print its data by the Print Preview form.
Layout Customization
This section describes how to customize the Pivot Table layout by expanding and collapsing field values, as well as hiding, displaying and reordering fields.
The following sections are available.
Resizing Columns
Describes how to resize columns displayed within the Pivot Table.
Expand and Collapse Groups in Pivot Tables
Provides information on how to expand and collapse field values and field headers.
Hide Pivot Table Fields
Guides you through the process of hiding Pivot Table fields.
Display Hidden Pivot Table Fields
Describes how to display fields that have previously been hidden.
Reorder Pivot Table Fields
Provides information on how to reorder Pivot Table fields.

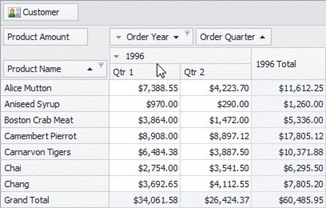

Resizing Columns
You can resize columns within the Pivot Table by dragging their borders.
Note: Regular, Total and Grand Total columns are resized independently. This means that resizing a regular column changes the width of all regular columns but does not affect Total and Grand Total columns, and vice versa.
Double-click a column border to automatically resize the column to the minimum width required to completely display its content.
