Delta



Delta

Cards allow you to visualize the difference between the actual and target values using special delta values and a delta indicator. If the default layout is used (Stretched layout type), the card displays the following delta values/elements:



DCDelta1



Delta Indicator - Indicates whether the actual value is less or greater than the target value.

Percent Variation and Absolute Variation - delta values that show a difference between the actual and target value. You can also display the Percent of Target value. To do this, customize the card's layout.

To customize settings that relate to the calculation and display of delta values/elements, use the Options button (the DCDelta2 icon) displayed next to the data item container in the Cards section.

DCDelta3

In the invoked Card Settings dialog, go to the Delta Options tab:

DCDelta4

Then, specify the following settings:

DCDelta5 Result Indication - You can specify the condition for displaying delta indication.

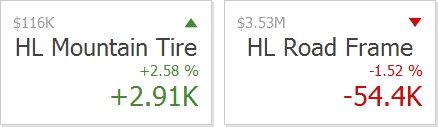

DCDelta6 Greater is Good - The 'good' indication is displayed if the actual value exceeds the target value; if the target value exceeds the actual value, the 'bad' indication displays.



DCDelta7

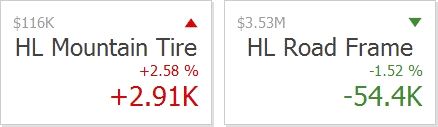

Less is Good - The 'bad' indication displays if the actual value exceeds the target value; if the target value exceeds the actual value, the 'good' indication displays.



DCDelta8

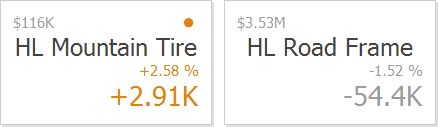

Warning if Greater  - A warning is displays only if the actual value exceeds the target value.



DCDelta9

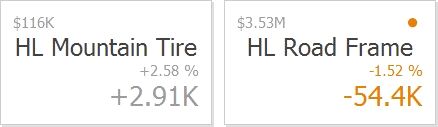

Warning if Less  - A warning is displays only if the target value exceeds the actual value.



DCDelta10

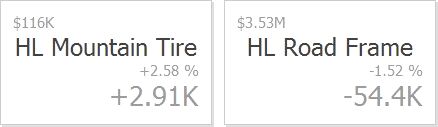

No Indication  - Indication does not display.



DCDelta11



clip0117 Threshold type / Threshold value - For instance, you can specify that a specific indication should display when the actual value exceeds the target value by 10% or by $2K. Use the Threshold type combo box to select whether you wish to specify the comparison tolerance in percentage values or absolute values. Then use the Threshold value box to specify the comparison tolerance.
