Data Inspector

Data Inspector is a dialog window that displays raw or aggregated data.

Overview

To invoke the Data Inspector window, click the "Inspect Data" button clip0235 in the dashboard item caption or select the "Inspect Data" context menu item.

Aggregated (Displayed) Data

The data shown as Aggregated is retrieved from the dashboard item's data storage.

clip0236

The columns are:

Dimensions, except the Sparkline.

Measures. A list of dimensions does not include unbound measures (the measures without a DataMember, such as Totals and the number of points in a Cluster.

clip0237 The Sparkline is displayed as a column.

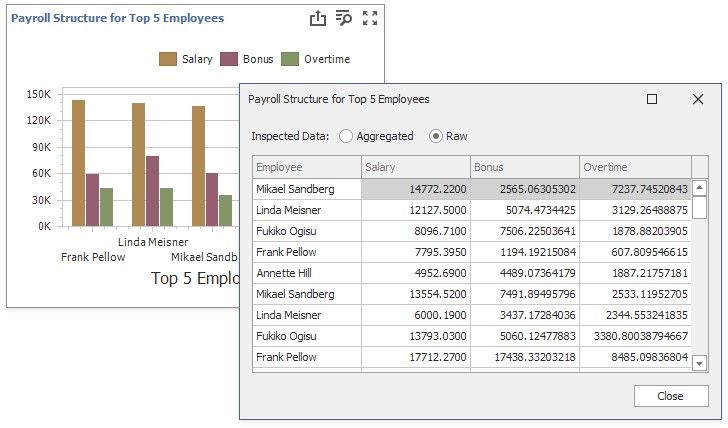

Raw Data

Raw data is the dashboard item's underlying data.

clip0238
